Product information "Fuse and amplifier circuit"

Remaining stock, favorable price

The (fuse and) amplifier circuit can be used for various purposes:

- Amplification of the power of a coupling circuit/key contacts to drive e.g. double solenoids and simultaneous safeguarding.

- Protection of an organ with electric tone and stop action and the corresponding historical console.

and much more.

One circuit has 16 inputs and outputs.

The circuit is controlled via a 12VDC - 28VDC input voltage. Here e.g. key contacts can be connected. These must now switch only a few milliamperes of current.

Via another circuit (load circuit) + and - are connected. This circuit is used to switch the applied voltage via the outputs when the corresponding input is switched.

Each output is protected by a 2A fuse.

Control by means of 14-28VDC

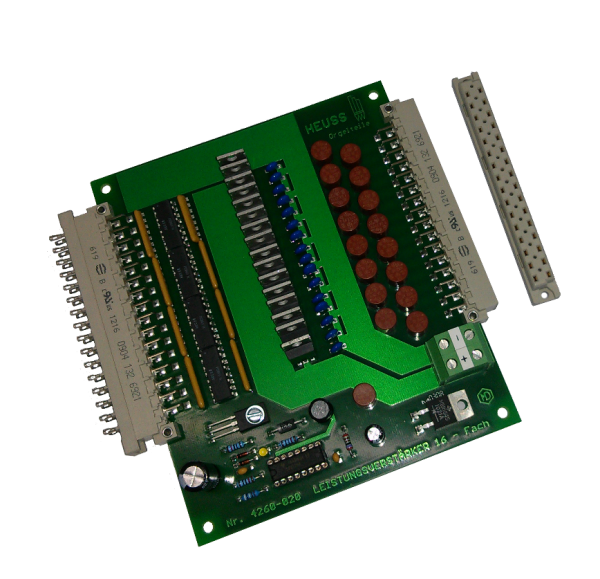

Additionally 2 pcs. of the plug 3010-105 are needed, please order it (shown in the picture).
