Pull down magnet (Pallet magnet)
Despite its narrowness (18mm), the pallet magnets have a great pulling power, speed and... more
Product information "Pull down magnet (Pallet magnet)"

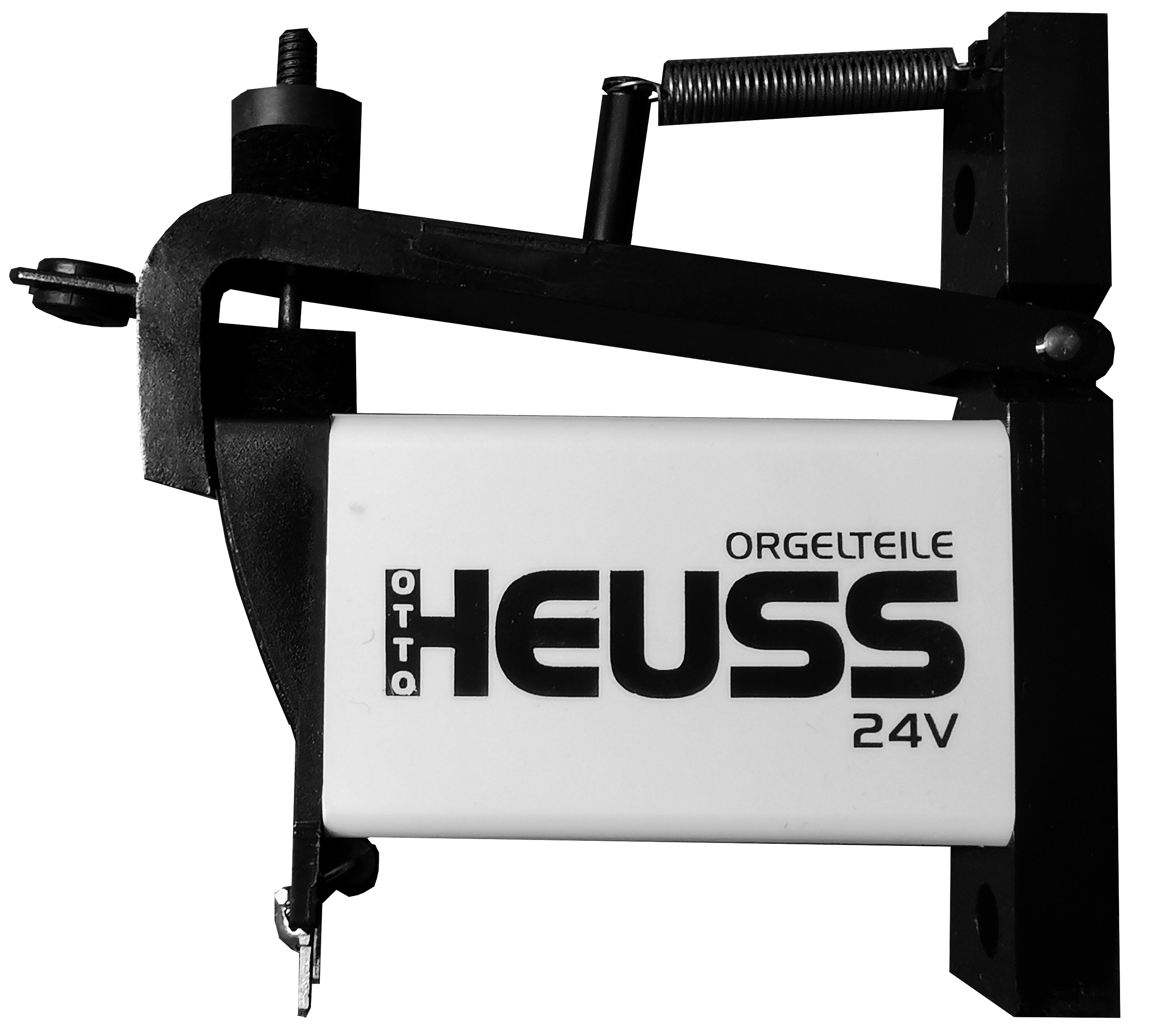

Despite its narrowness (18mm), the pallet magnets have a great pulling power, speed and favourable tensile characteristics. The anchor is guided in a sturdy brass bearing through a stainless steel V2A axis with perfect fit and backlash. Two limit stops with felt cushions ensure that it runs quickly and quietly into the final position. The weight of the anchor is neutralized by the attached relief spring. To reduce induction voltages, each pallet magnet is equipped with a varistor as spark arrester. The surface is galvanically coated.
14V / 25Ω / 0,56A
24V / 50Ω / 0,48A

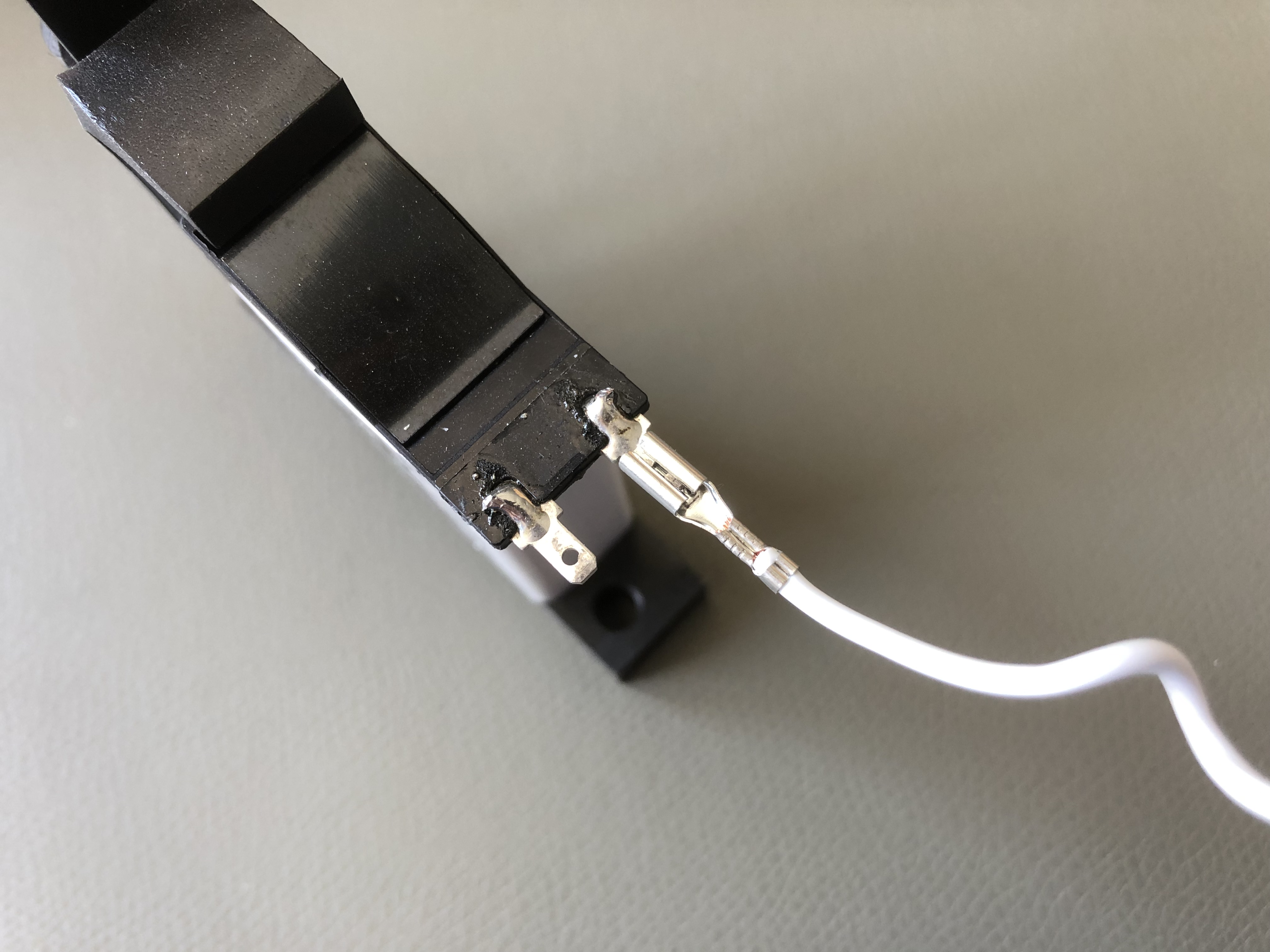

Connection cables are not included and can be ordered separately.
Tensile force:
24V: 850g-1000g (8,5N-10N)
14V: 750g-900g (7,5N-9N)
no 100% duty cycle
