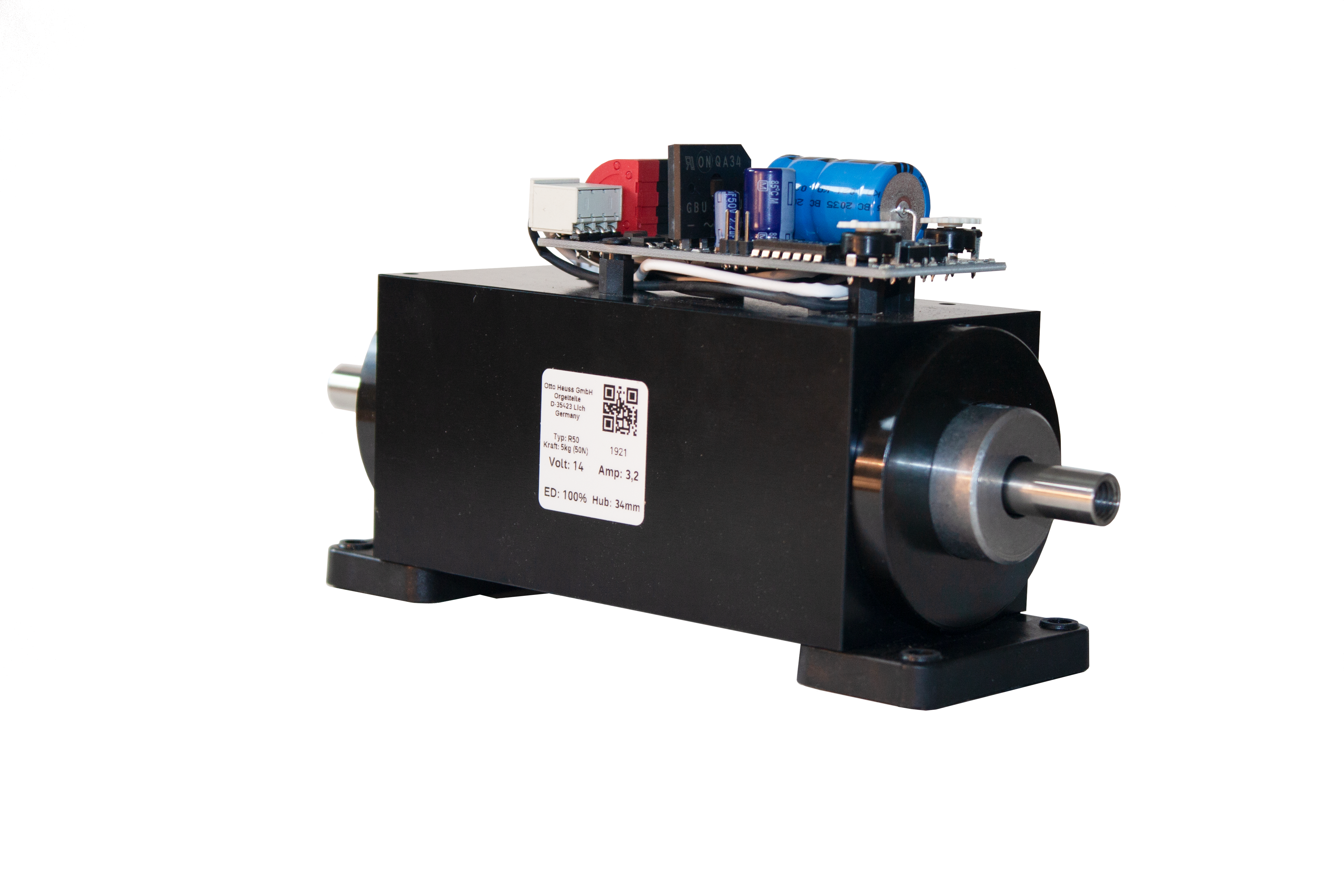

Stop magnet for electrical actuation of slider chests.
Mounted circuit board: 14V / 24V AC and DC, for sliders, tremulants and couplers, all in one circuit.

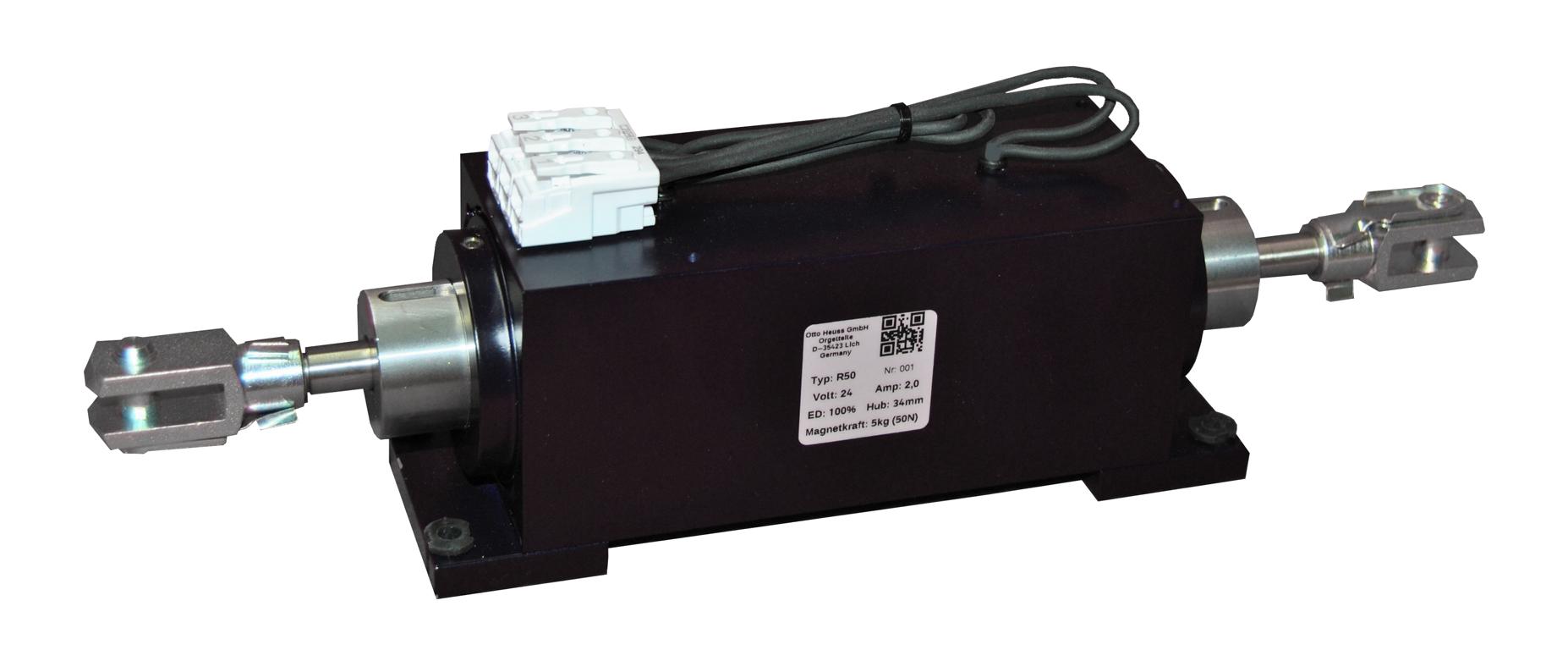

Delivered without hitch. Please order clevis yoke, hook, hook long and / or double-sided, separately.
|Magnet type||Current at 24V||Current at 14V||Traction at 35mm||Traction at 27mm||Travel in mm|
|R50||1,8A||3,2A||40N (4kg)||50N (5kg)||11-35|
Please ensure that the motor is installed as centrally as possible to the slider travel. An asymmetric adjustment of the motor travel can cause the magnet to weaken, as the magnet core is outside the magnetic field.
