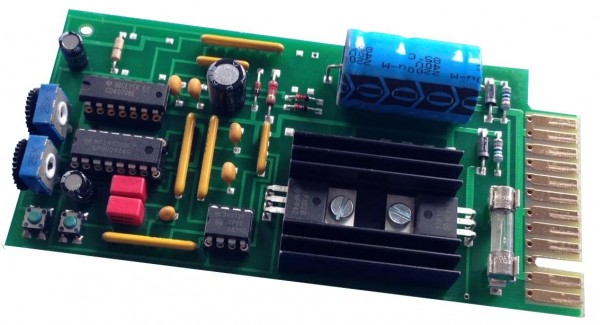

Plug-in control card

Delivery time approx. 5 working days
- Order number: 4054214
Discontinued model, no longer in production.
Successor model 4056-850
Plug in control card for R20 / R40 / R50 / R60 stop magnet
Attached 5x20mm glass tube fuse, as device fuse for magnets.
Button for manually triggered electrical movement of the magnet.
Two potentiometers allow you to set the power of ON and OFF.
Available in DC for conventional power supplies and central rectifier cabinet, as well as in AC for single transformator cabinet with rectification on the card.
single transformator and 14V on request.
Solderless connections
Control via 14-28VDC
Circuit can be reversed to negative.
Impulse: For double-registration on and off pulse
Duration : For normal electrical registration continuous signal
