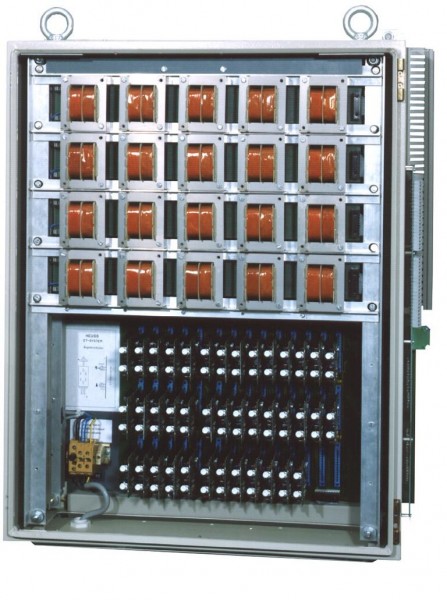

Single transformer cabinet (ET cabinet)
Delivery time approx. 5 working days
- Order number: 4054220
Plug-in card cabinet for holding single transformer plug-in cards for stop magnets R20 / R40 / R50 / R60.
Infeed of 230V (different voltages on request) via grid of the church. The voltage for magnets is generated separately for each magnet via a single transformer. As a result, no voltage fluctuations and / or dips occur when several magnets are switched simultaneously, and constant working of all magnets is ensured at all times. There is no need for a separate power supply to supply the stop magnets with voltage.
The generated AC voltage is rectified by the individual transformers on the plug-in card.
Individual protection is provided on the plug-in cards.
Available to hold 20, 30 and 40 cards.
Solderless connections
Plug-in cards must be ordered separately.
(ET = single transformer)
Cabinet dimensions ET 20/30/40:
760x650x200mm
Primary power at 230V:
ET 20 = circa 1,450 watts
ET 30 = about 2,150 watts
ET 40 = about 2,850 watts
